Two-Pole Inline Switch – Transparent
Two-Pole Inline Switch – Transparent

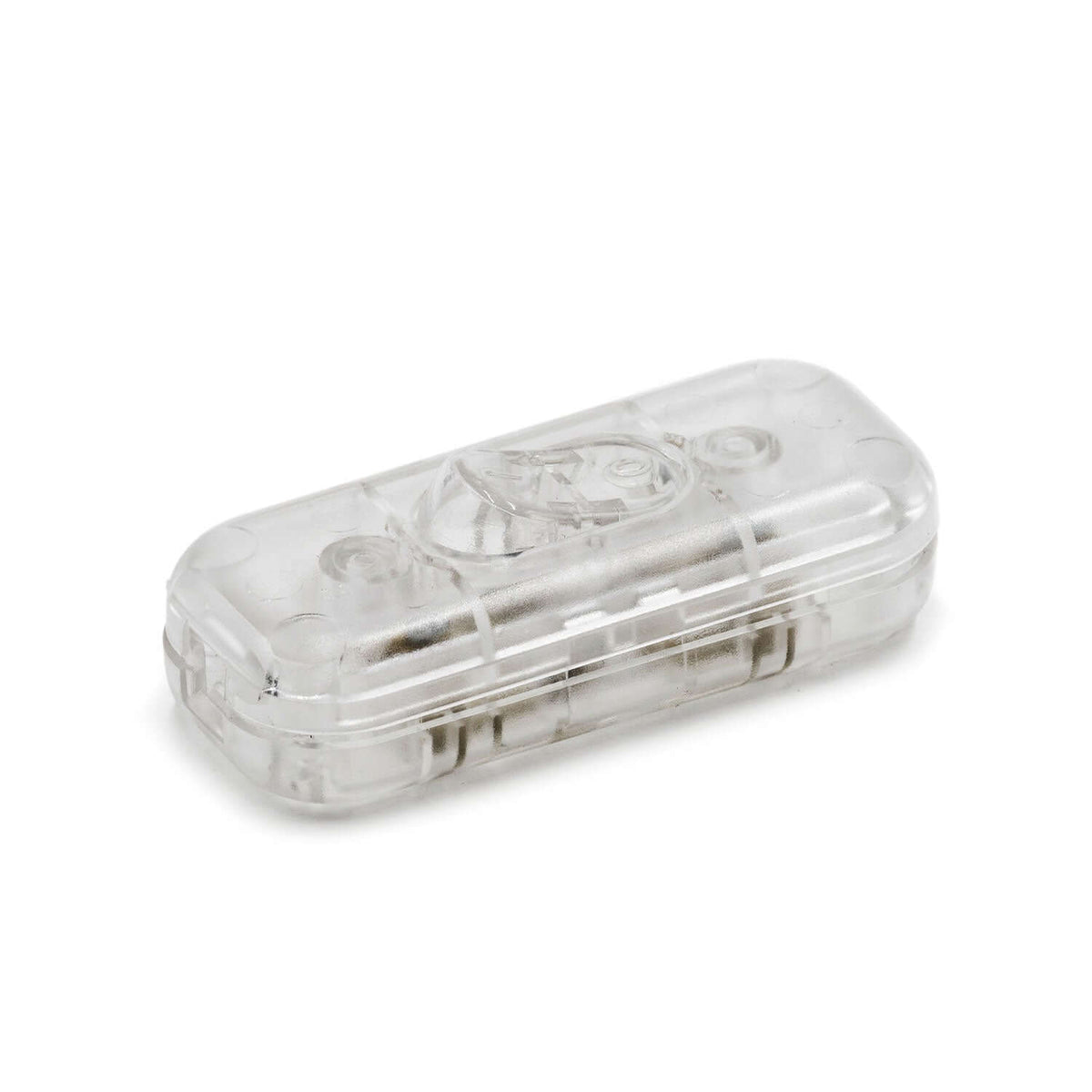

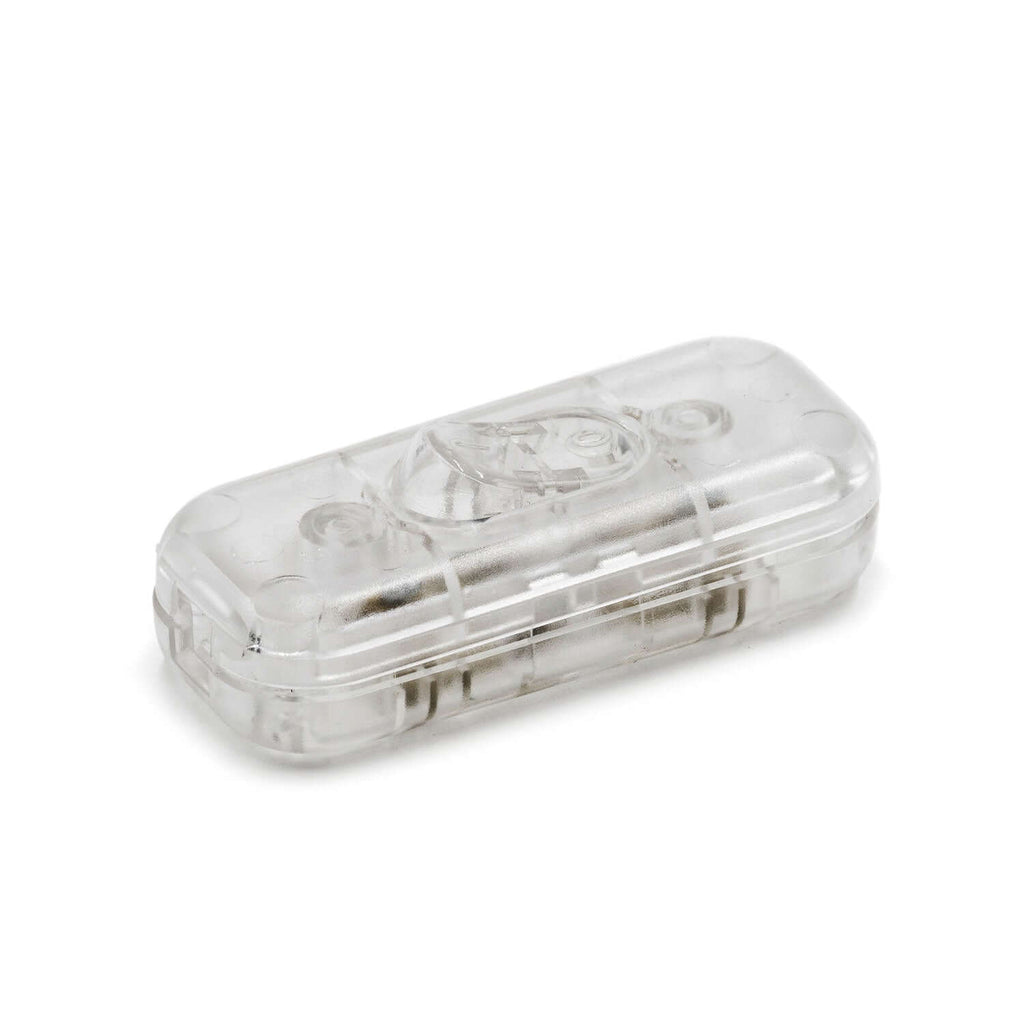

The bipolar inline switch in transparent sits in the cable and switches both conductors. Thanks to the clear housing, it barely stands out on the fabric cable and visually takes on the cable colour. Technically it is rated for 250 V, 2 A resistive load and 1 A inductive or lamp load, connected via screw terminals. Dimensions: 60 x 25 mm, height 15 mm.

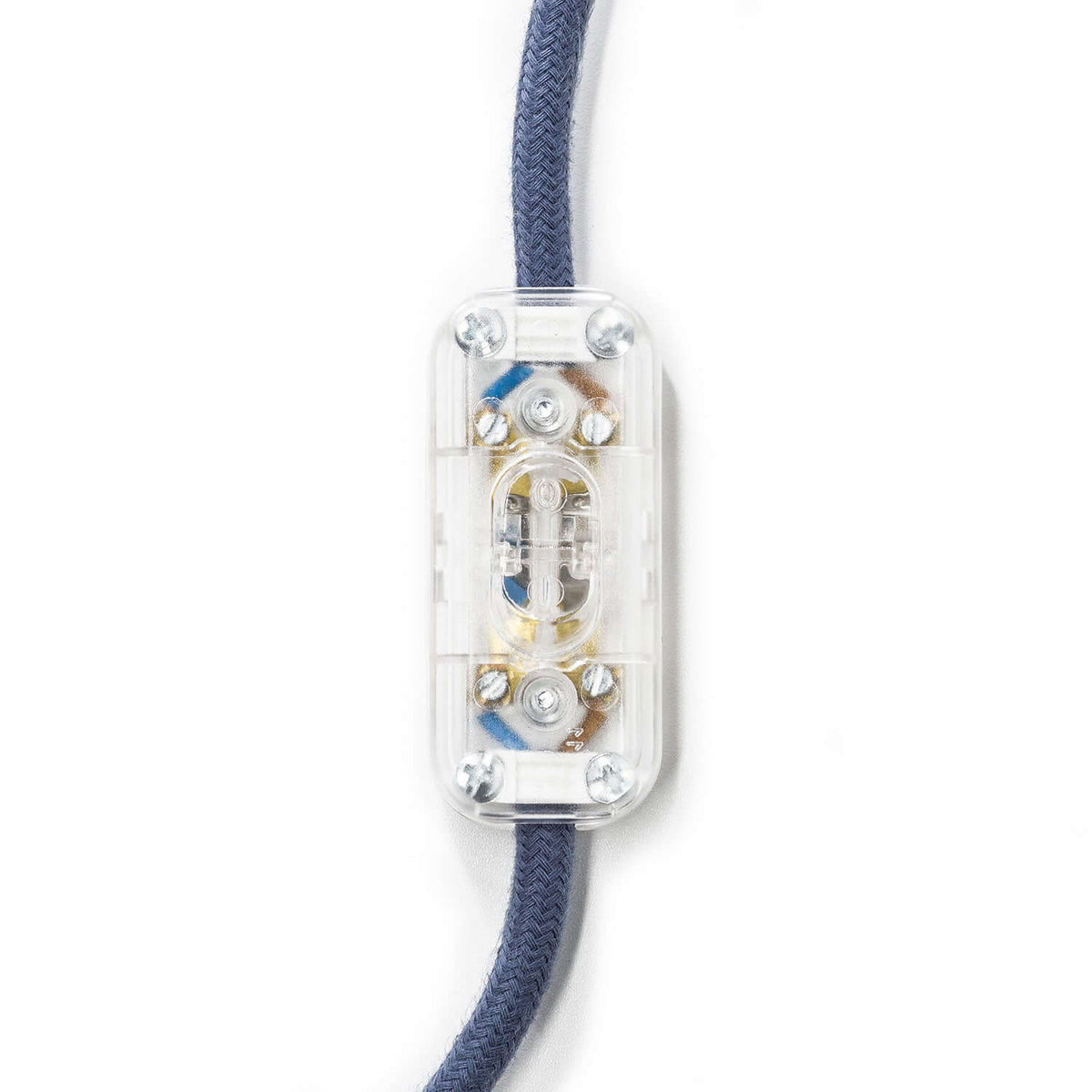

It is designed for lamp cable sets of protection class II lights with 2x0.75 mm² cable (H03VVH2-F, H03VV-F), for example for table or floor lamps. In the “Build your light” configurator you enter the distance to the lamp holder, and we fit the switch at exactly that point.
🔧 Technical details
- 🔌 Rated voltage: 250V
- ⚡ Resistive load: 2A
- ⚡ Inductive load: 1A
- ⚡ Lamp load: 1A
- 🧵 Terminals: Screw terminals
- 🔧 Use: for lamp cable sets of class II luminaires with H03VVH2-F, 2x0.75mm² and H03VV-F, 2x0.75mm² cables

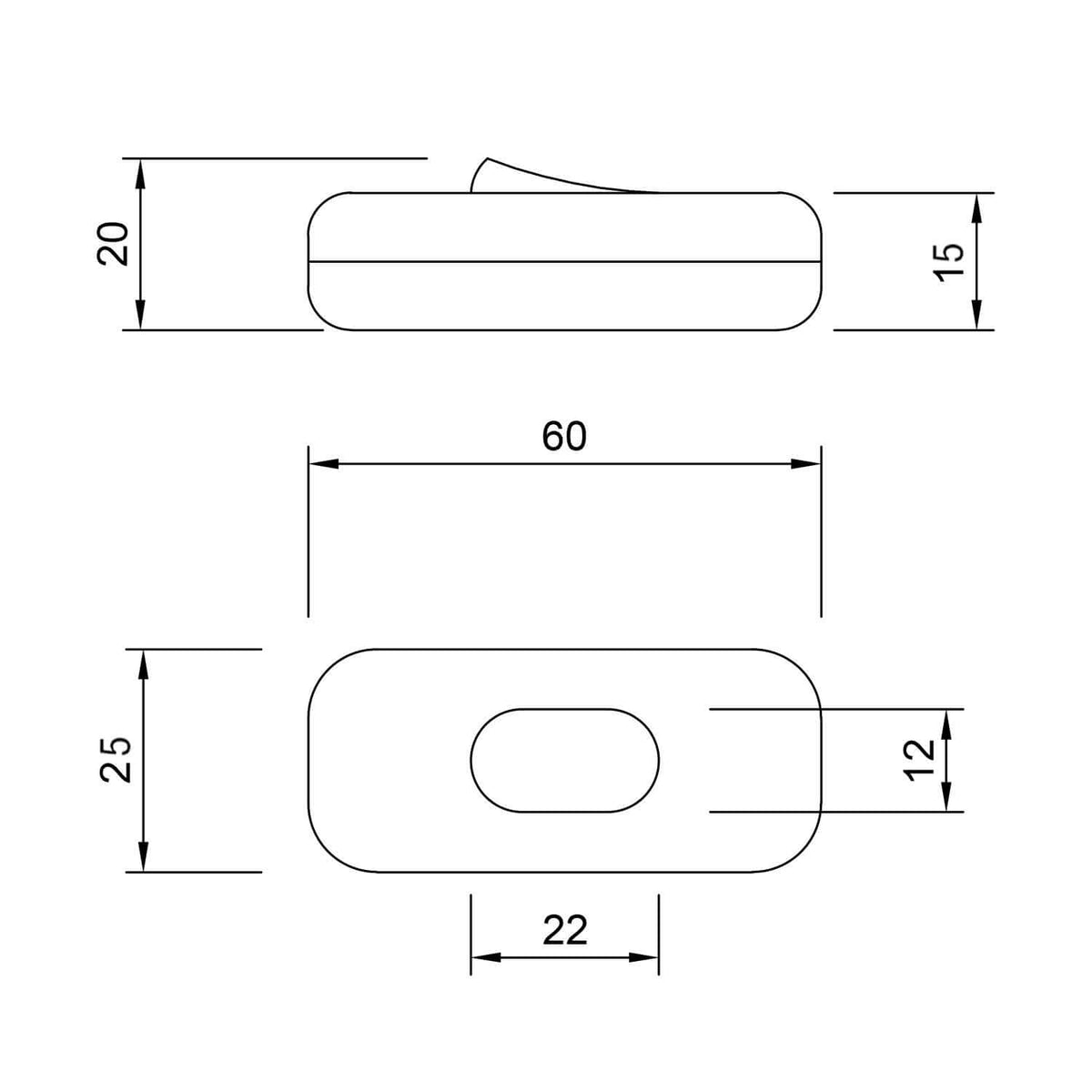

- 📏 Dimensions: 60 x 25 mm - H 15 mm
🚚 Delivery & returns
Delivery time: 3 working days within Germany
We deliver across the EU. Shipping costs and delivery times per country: Shipping & delivery.
Unused items can be returned – here's how: Returns. Cable cut to your length is excluded from the right of withdrawal.
Minimum 2-year legal guarantee – your rights
🏭 Manufacturer & product safety
Manufacturer: Mosaic S.p.A. (Creative-Cables)
Lungo Dora P. Colletta 113/9, 10153 Torino, Italia
Contact: gpsr@mosaicluce.com
Item number: INTRFBT · EAN 8057730048354
Safety information: connection to the 230 V mains must only be carried out by a qualified electrician. Switch off the power before installation and before changing the bulb. Observe the maximum wattage and the base type of the bulb. Read and keep the manufacturer's enclosed installation and safety instructions.
🛠️ Assembly & safety
Fits all our textile cables with 2x0.75 and 3x0.75 mm². Not sure whether a part fits your lamp? Just ask – we'll answer before you order the wrong thing.
