Single-Pole Inline Switch with Earth Terminal – Transparent
Single-Pole Inline Switch with Earth Terminal – Transparent

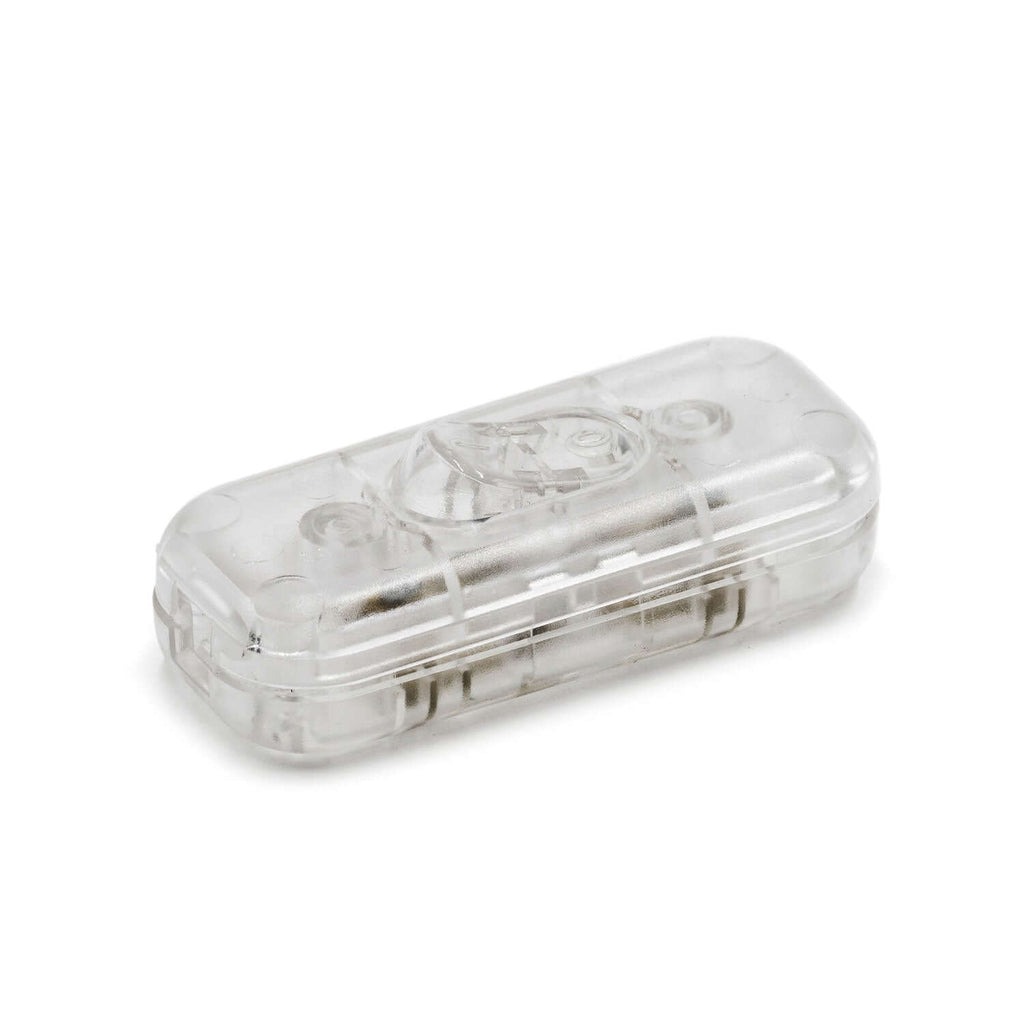

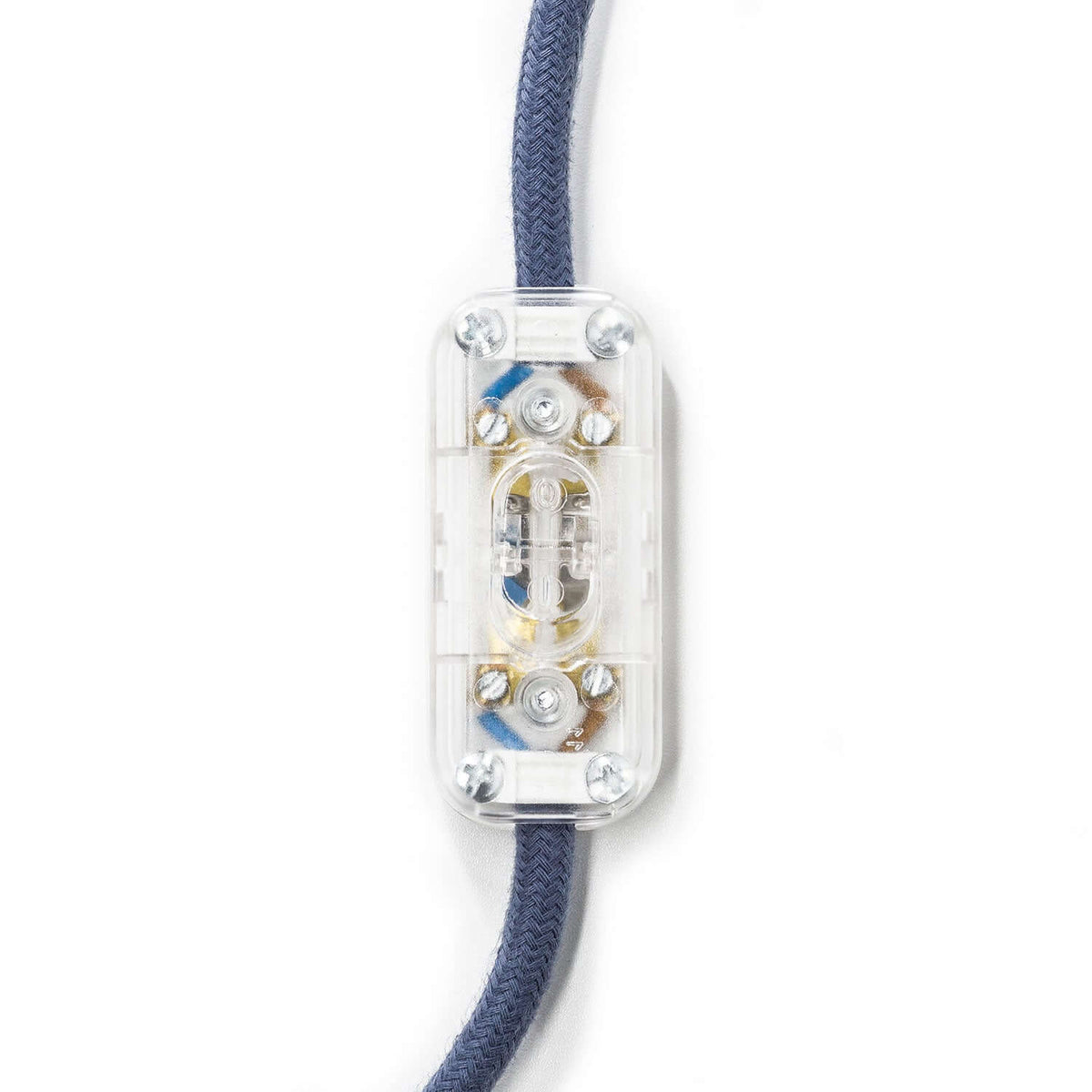

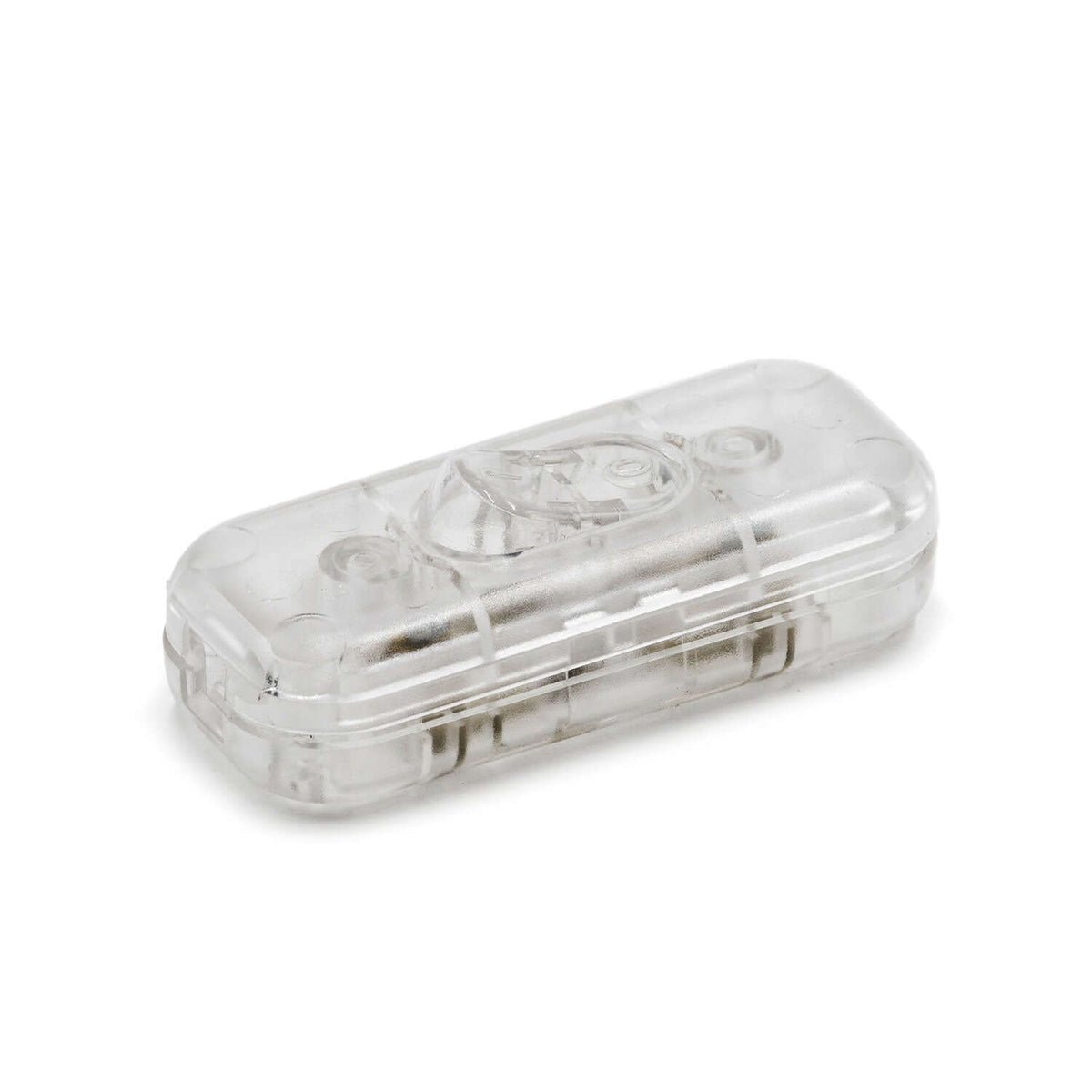

The single-pole inline switch with earth terminal in transparent is fitted into the fabric cable and switches the light right on the cable. The see-through housing shows the cable colour and wire routing, so it goes with any fabric cable, whether plain, patterned or jute-look. The earth terminal also takes an earth conductor.
It is rated for 250 V, 2 A resistive load as well as 1 A inductive load and 1 A lamp load. It is connected via screw terminals and can be used with H03VVH2-F 2x0.75 mm² and H03VV-F in 2x0.75 and 3x0.75 mm². The housing measures 60 x 25 mm and is 15 mm high. In the configurator at Lampisto you choose how far from the lamp holder the switch sits.
🔧 Technical details
- 🔌 Rated voltage: 250V
- ⚡ Resistive load: 2A
- ⚡ Inductive load: 1A
- ⚡ Lamp load: 1A
- 🧵 Terminals: Screw terminals
- 🔧 Use: for lamp cable sets of class II luminaires with H03VVH2-F, 2x0.75mm² and H03VV-F, 2x0.75mm² and 3x0.75mm²

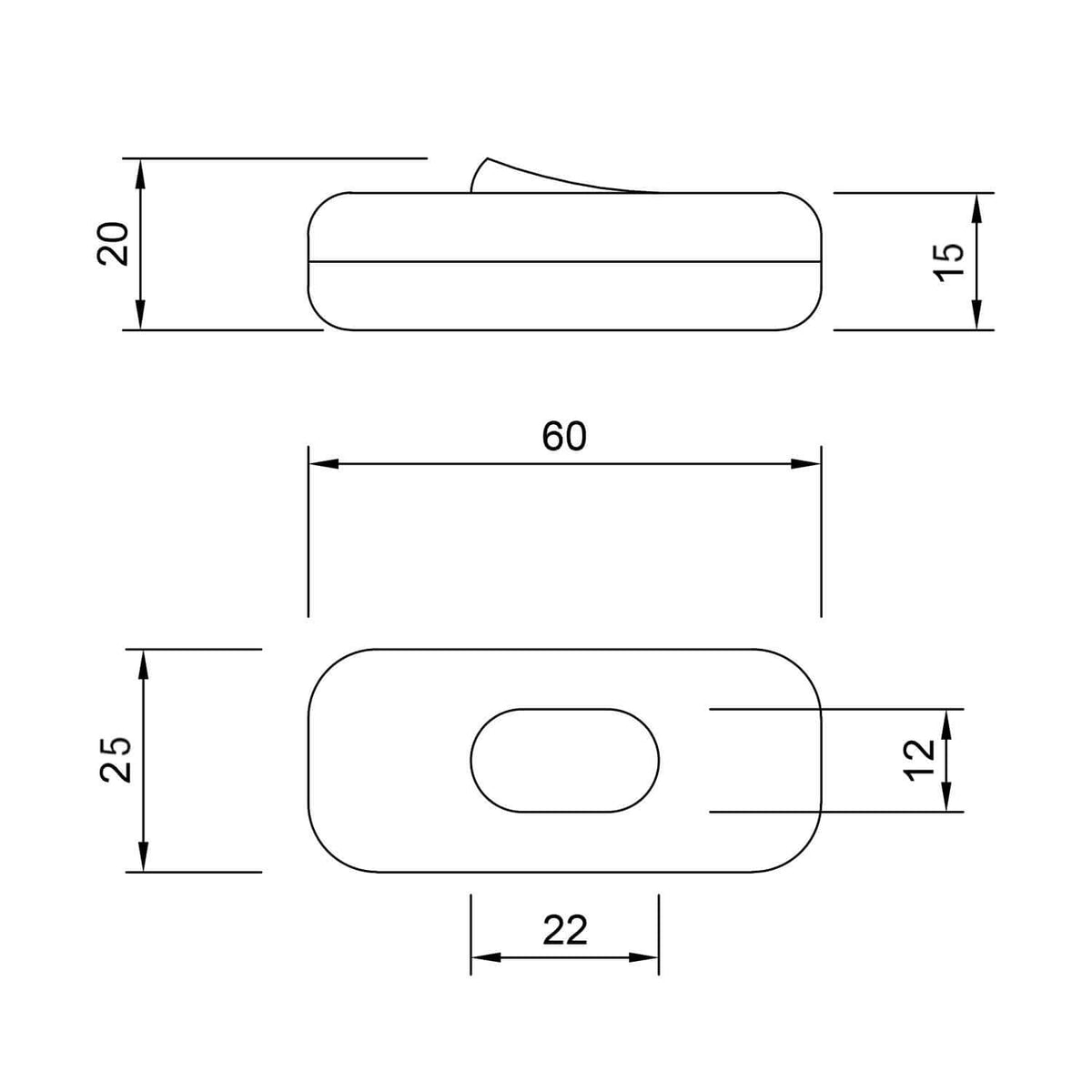

- 📏 Dimensions: 60 x 25 mm - H 15 mm
🚚 Delivery & returns
Delivery time: 3 working days within Germany
We deliver across the EU. Shipping costs and delivery times per country: Shipping & delivery.
Unused items can be returned – here's how: Returns. Cable cut to your length is excluded from the right of withdrawal.
Minimum 2-year legal guarantee – your rights
🏭 Manufacturer & product safety
Manufacturer: Mosaic S.p.A. (Creative-Cables)
Lungo Dora P. Colletta 113/9, 10153 Torino, Italia
Contact: gpsr@mosaicluce.com
Item number: INTRFBT-CT · EAN 8050997901158
Safety information: connection to the 230 V mains must only be carried out by a qualified electrician. Switch off the power before installation and before changing the bulb. Observe the maximum wattage and the base type of the bulb. Read and keep the manufacturer's enclosed installation and safety instructions.
🛠️ Assembly & safety
Fits all our textile cables with 2x0.75 and 3x0.75 mm². Not sure whether a part fits your lamp? Just ask – we'll answer before you order the wrong thing.
