WAGO Connection Kit for 3-Core Cable, for 6-Hole Ceiling Rose
WAGO Connection Kit for 3-Core Cable, for 6-Hole Ceiling Rose

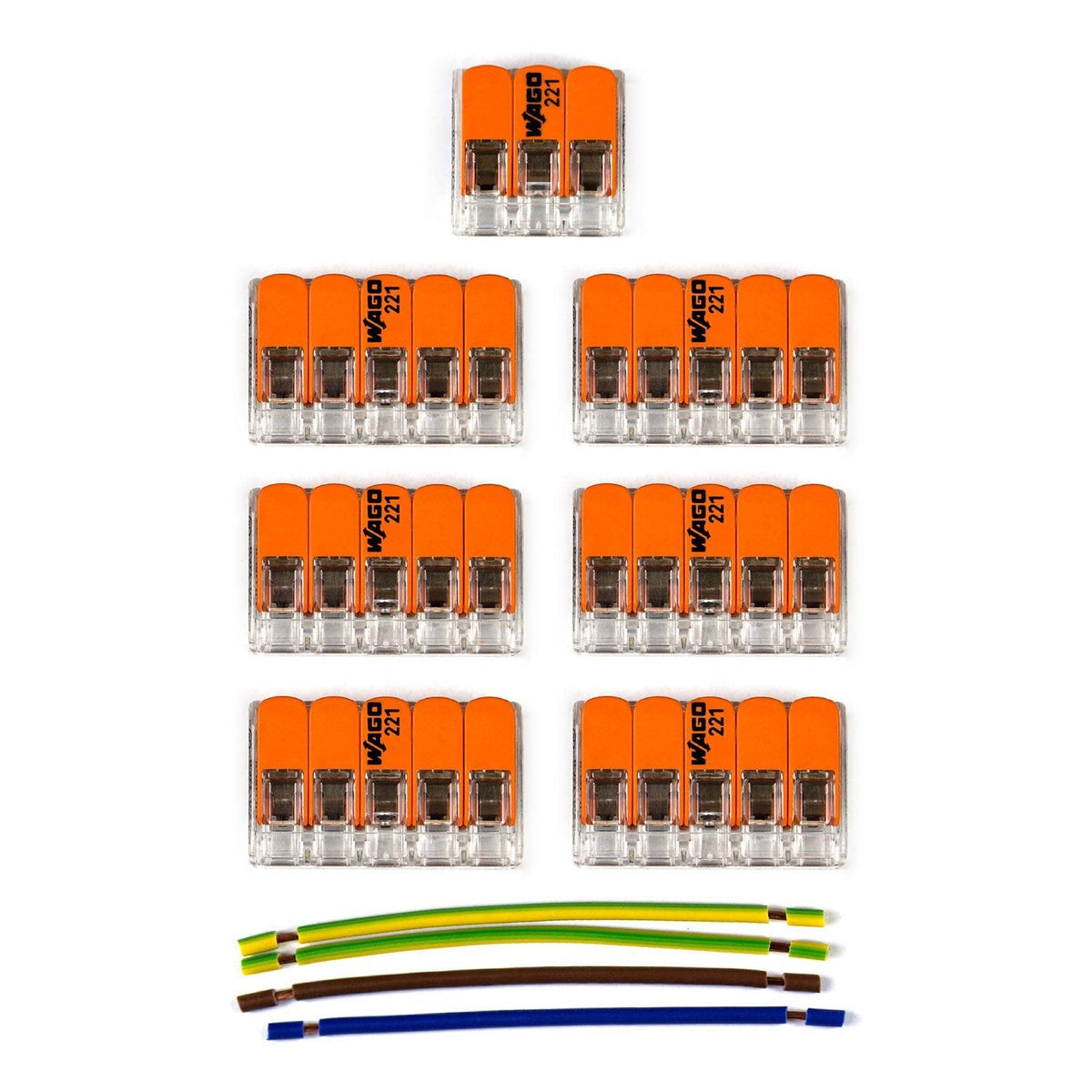

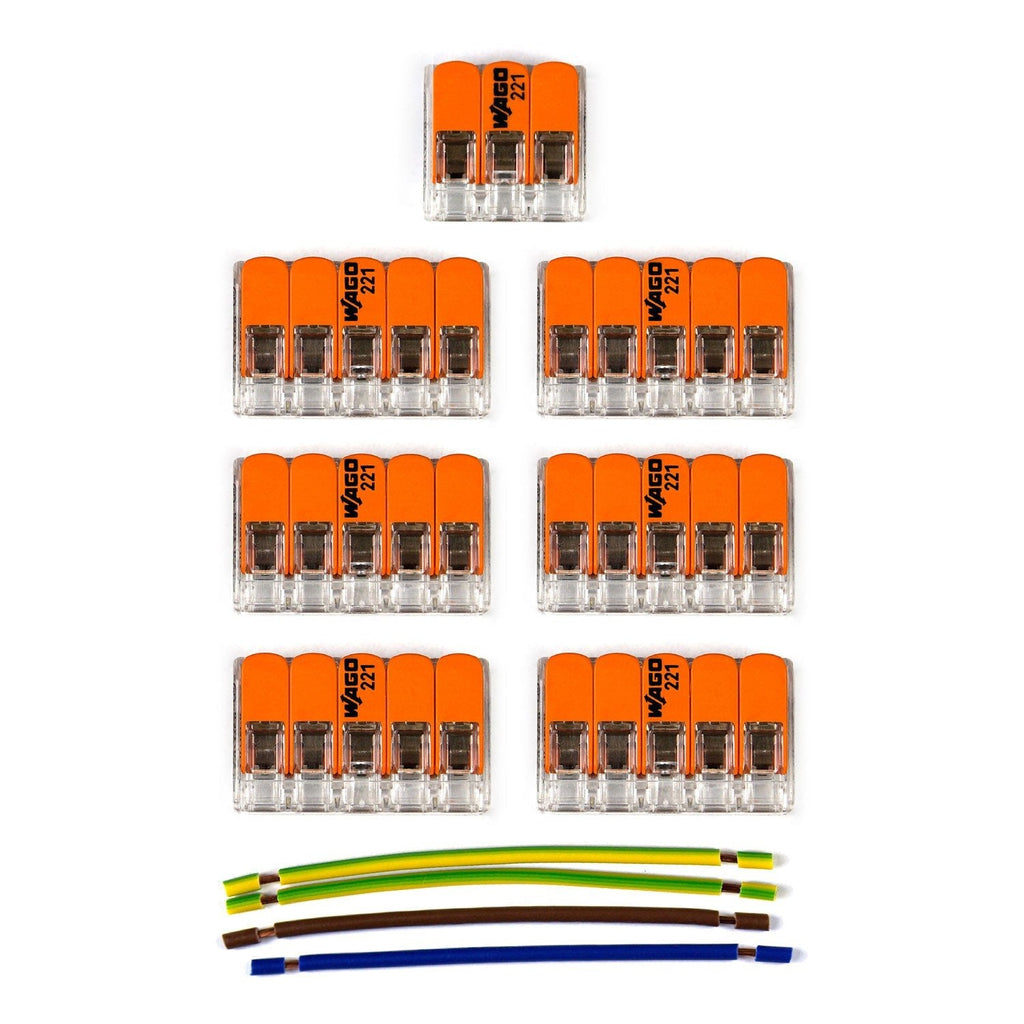

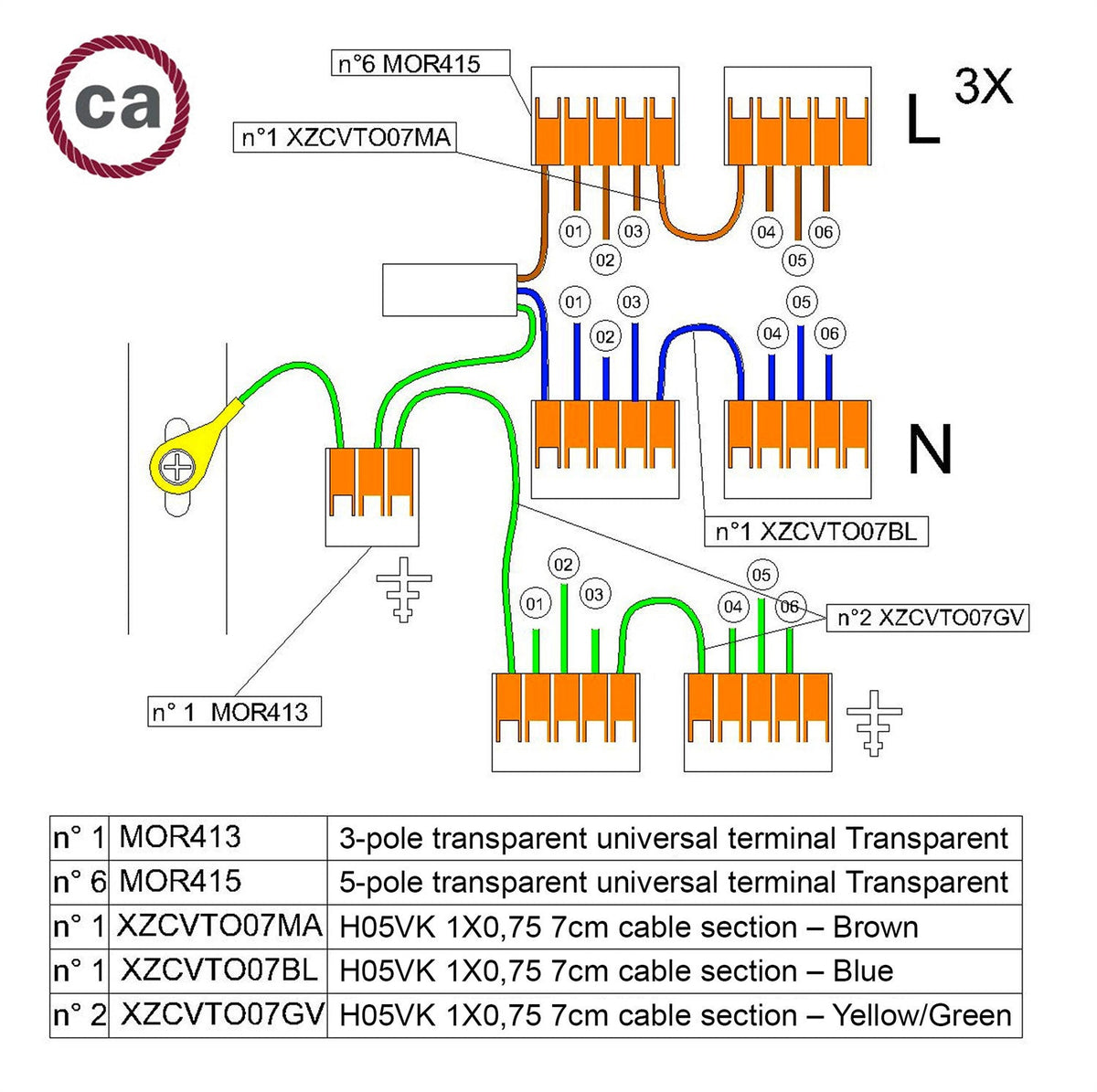

The WAGO connection kit for 3-core cable and 6-hole ceiling rose contains everything to wire six three-core pendants with earth conductor in the ceiling rose. The kit includes 6 connectors with 5 inputs each and 1 connector with 3 inputs, plus single cores of 7 cm: 1 brown, 1 blue and 2 green.
The terminals take rigid and flexible conductors from 0.2 to 4 mm², are rated for 450 V and 24 A and approved for 85 °C according to EN 60998. Strip to 9 mm (+1 mm). At Lampisto, you combine the kit with the 6-outlet ceiling rose, 3x0.75 fabric cable, lamp holders and light bulbs.
🔧 Technical details
- 🧵 Nominal cross-section: 3 x 0.2 - 4 mm² for rigid or flexible wires
- 💡 6 connectors – number of inputs: 5
- 💡 1 connector – number of inputs: 3
- 🔌 Rated voltage: 450 V
- ⚡ Rated current: 24 A
- 📏 Stripping length: 9 mm (+1 mm)
- Maximum permitted ambient temperature according to EN 60998: 85°C
- 🧵 1 piece of single-core brown cable: 7 cm
- 🧵 1 piece of single-core blue cable: 7 cm
- 🧵 2 pieces of single-core green cable: 7 cm
🚚 Delivery & returns
Delivery time: 3 working days within Germany
We deliver across the EU. Shipping costs and delivery times per country: Shipping & delivery.
Unused items can be returned – here's how: Returns. Cable cut to your length is excluded from the right of withdrawal.
Minimum 2-year legal guarantee – your rights
🏭 Manufacturer & product safety
Manufacturer: Mosaic S.p.A. (Creative-Cables)
Lungo Dora P. Colletta 113/9, 10153 Torino, Italia
Contact: gpsr@mosaicluce.com
Item number: KMOR306 · EAN 8057730920889
Safety information: connection to the 230 V mains must only be carried out by a qualified electrician. Switch off the power before installation and before changing the bulb. Observe the maximum wattage and the base type of the bulb. Read and keep the manufacturer's enclosed installation and safety instructions.
🛠️ Assembly & safety
Fits all our textile cables with 2x0.75 and 3x0.75 mm². Not sure whether a part fits your lamp? Just ask – we'll answer before you order the wrong thing.
