WAGO Connection Kit for 2-Core Cable, for 9-Hole Ceiling Rose
WAGO Connection Kit for 2-Core Cable, for 9-Hole Ceiling Rose

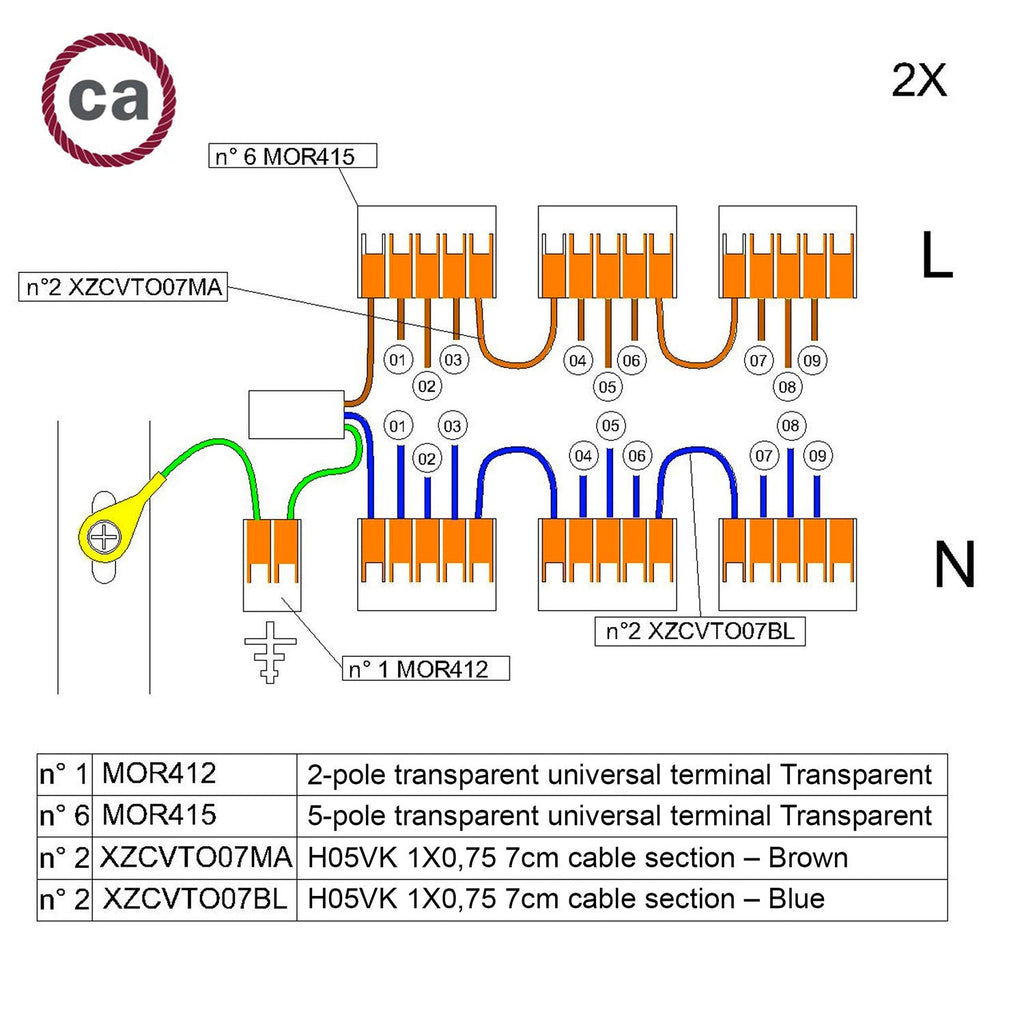

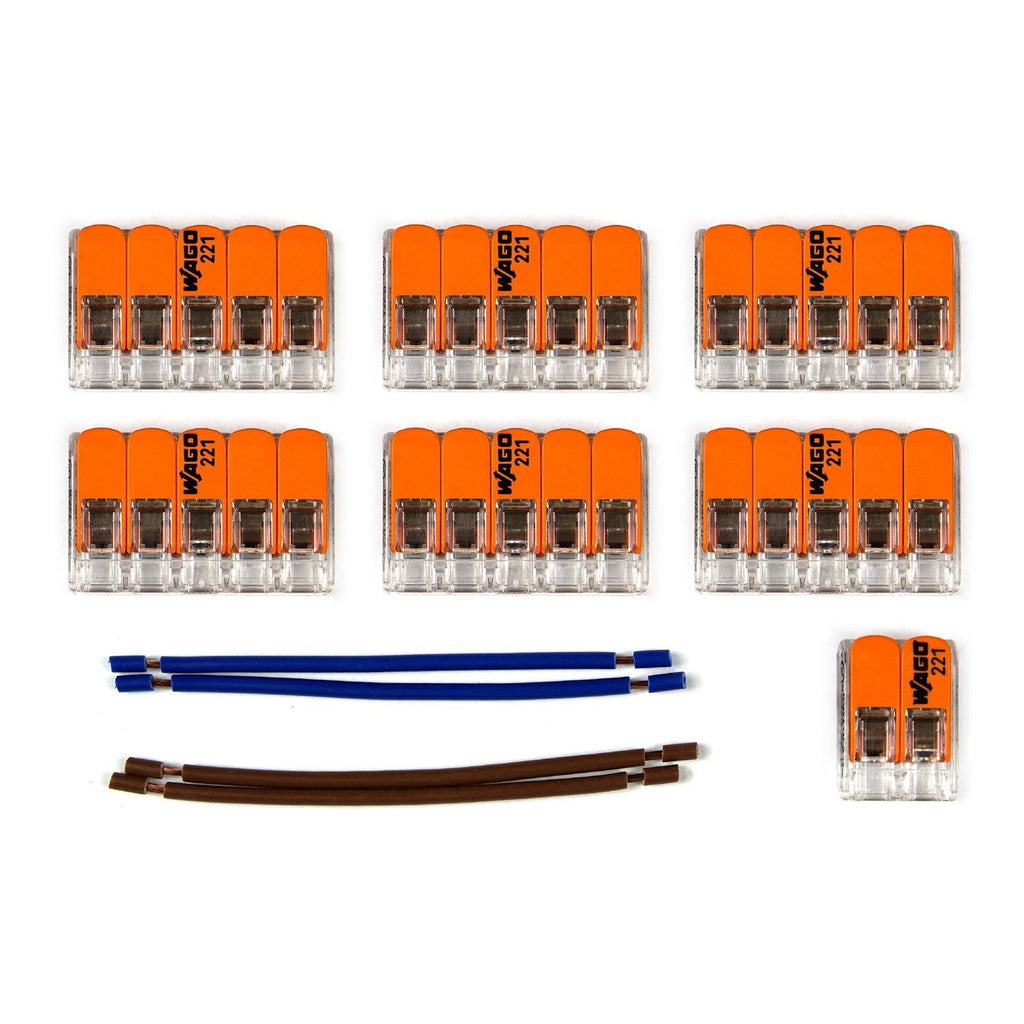

Nine pendants on one ceiling rose need tidy wiring. This WAGO connection kit is put together for exactly that: for a 9-hole ceiling rose with 2-core fabric cable. You get six connectors with five inputs each, one connector with two inputs and two brown and two blue single strands of 7 cm each, which you use to link the connectors to each other and to the supply cable.
It takes rigid and flexible conductors from 0.2 to 4 mm², with ratings of 450 V and 24 A. The stripping length is 9 mm (+1 mm), and the maximum permissible ambient temperature according to EN 60998 is 85 °C. To go with it, you'll find the 9-outlet ceiling rose, 2x0.75 fabric cable and lamp holders at Lampisto – or plan everything together in the “Build your light” configurator.
🔧 Technical details
- 🧵 Nominal cross-section: 2 x 0.2 – 4 mm² for rigid or flexible wires
- 💡 6 connectors – number of inputs: 5
- 💡 1 connector – number of inputs: 2
- 🔌 Rated voltage: 450 V
- ⚡ Rated current: 24 A
- 📏 Stripping length: 9 mm (+1 mm)
- Maximum permitted ambient temperature according to EN 60998: 85 °C
- 🔹 2 single strands, brown: 7 cm
- 🔹 2 single strands, blue: 7 cm
🚚 Delivery & returns
Delivery time: 3 working days within Germany
We deliver across the EU. Shipping costs and delivery times per country: Shipping & delivery.
Unused items can be returned – here's how: Returns. Cable cut to your length is excluded from the right of withdrawal.
Minimum 2-year legal guarantee – your rights
🏭 Manufacturer & product safety
Manufacturer: Mosaic S.p.A. (Creative-Cables)
Lungo Dora P. Colletta 113/9, 10153 Torino, Italia
Contact: gpsr@mosaicluce.com
Item number: KMOR209 · EAN 8057730920766
Safety information: connection to the 230 V mains must only be carried out by a qualified electrician. Switch off the power before installation and before changing the bulb. Observe the maximum wattage and the base type of the bulb. Read and keep the manufacturer's enclosed installation and safety instructions.
🛠️ Assembly & safety
Fits all our textile cables with 2x0.75 and 3x0.75 mm². Not sure whether a part fits your lamp? Just ask – we'll answer before you order the wrong thing.
