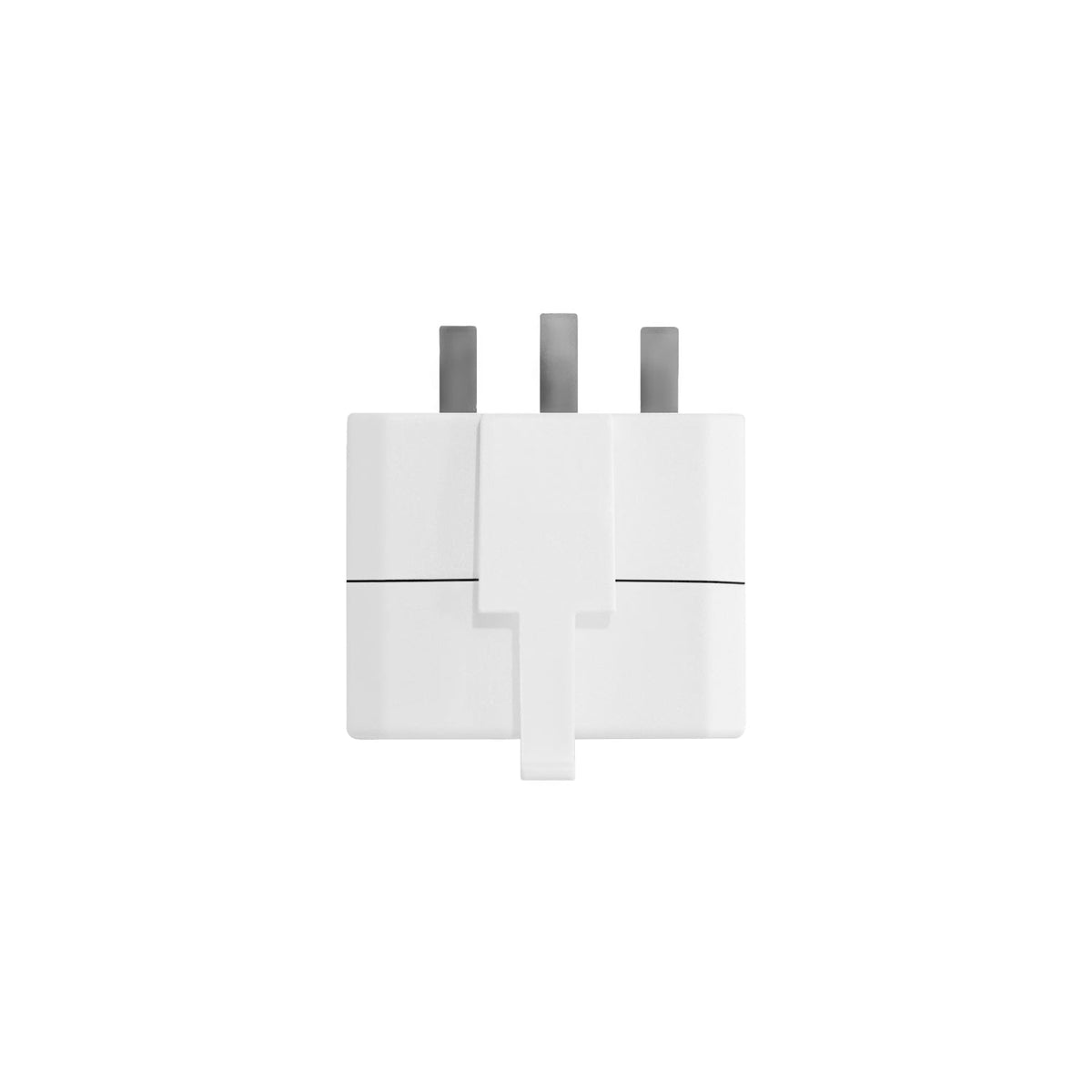

DCL 2P+T Plug
DCL 2P+T Plug
The DCL 2P+T plug is designed for light connections using the DCL system: two poles plus earth contact, with a thermoplastic housing rated IP20 for dry indoor spaces. It gives a fabric cable light a plug-in connection, so you can later remove it and reconnect it without re-wiring the terminals.
The cable is prepared as usual: strip the sheath back about 3 cm, strip the cores, tighten them in the screw terminals and tighten the cable grip. Because of the earth contact, it suits three-core fabric cable 3x0.75. At Lampisto you can combine it with fabric cable, lamp holder and bulb from the ‘Build your light’ configurator. Check beforehand whether your ceiling outlet has a DCL connection box.
🔧 Technical details
- 🧱 Material: Thermoplastic
- 🛡️ IP rating: IP20
🚚 Delivery & returns
Delivery time: 3 working days within Germany
We deliver across the EU. Shipping costs and delivery times per country: Shipping & delivery.
Unused items can be returned – here's how: Returns. Cable cut to your length is excluded from the right of withdrawal.
Minimum 2-year legal guarantee – your rights
🏭 Manufacturer & product safety
Manufacturer: Mosaic S.p.A. (Creative-Cables)
Lungo Dora P. Colletta 113/9, 10153 Torino, Italia
Contact: gpsr@mosaicluce.com
Item number: ARD042764 · EAN 8056813331277
Safety information: connection to the 230 V mains must only be carried out by a qualified electrician. Switch off the power before installation and before changing the bulb. Observe the maximum wattage and the base type of the bulb. Read and keep the manufacturer's enclosed installation and safety instructions.
🛠️ Assembly & safety
Fits all our textile cables with 2x0.75 and 3x0.75 mm². Not sure whether a part fits your lamp? Just ask – we'll answer before you order the wrong thing.
